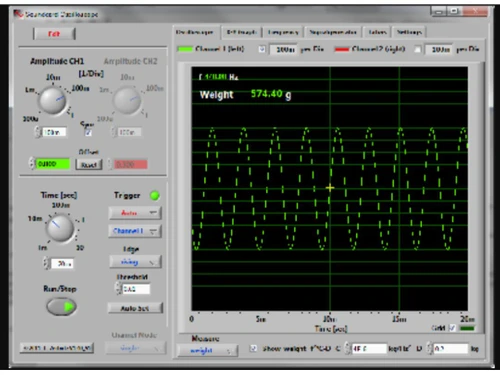

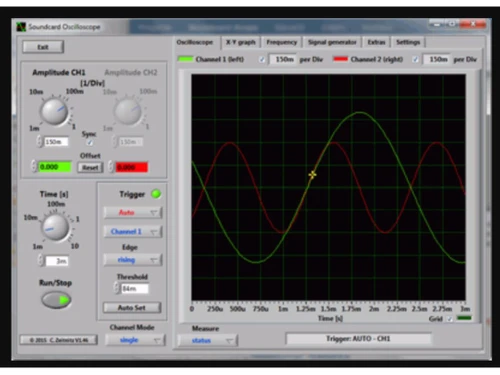

Soundcard Oscilloscope is a software tool that serves as a dual-channel oscilloscope, specifically engineered for in-depth sound analysis. It distinguishes itself from standard sound oscilloscopes by utilizing an innovative data acquisition technique that enables ongoing observation of input signals, ensuring no trigger events are overlooked prior to data capture. This methodology facilitates a responsive screen refresh rate and reliable real-time data representation.
The software boasts advanced triggering capabilities, featuring both pre-trigger and post-trigger options that enhance its functionality over typical sound card instruments. Operating at a sampling rate of 44.1kHz and 16-bit resolution, it provides users with accurate and nuanced signal evaluations. With the ability to select data sources from the Windows mixer, users can choose inputs from Microphone, Line-In, or Wave, and can expect a frequency response typically ranging from 20Hz to 20,000Hz. Additionally, it is equipped with a dual-channel signal generator capable of producing various waveforms—sine, square, triangular, and sawtooth—alongside an array of noise spectra within a frequency range of 0 to 20kHz. The software can be accessed for free through techjockey.com, with subscription options and premium package details available upon request.
