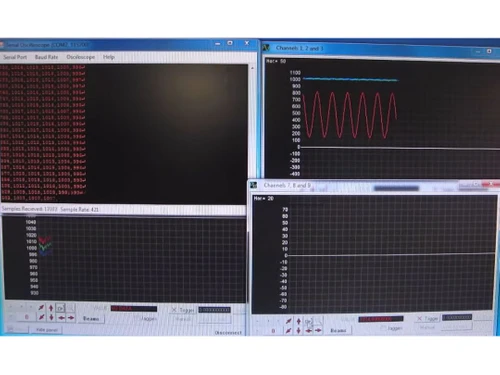

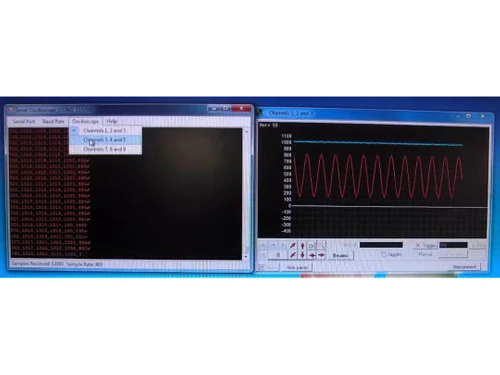

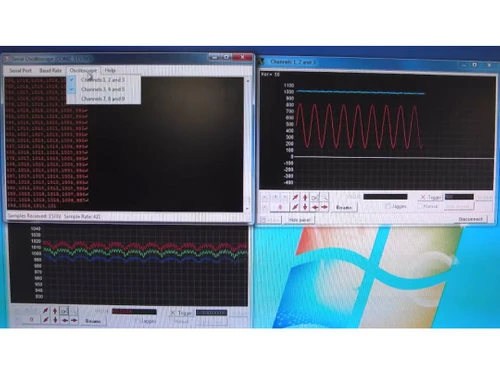

This Windows-based application enables users to visualize and analyze serial data streams originating from sensors or embedded systems. By converting comma-separated values into graphical representations, it allows for straightforward monitoring and analysis of real-time data across multiple channels. With support for up to nine channels across three different oscilloscopes, users can evaluate various data streams simultaneously, enhancing their ability to troubleshoot and optimize systems.

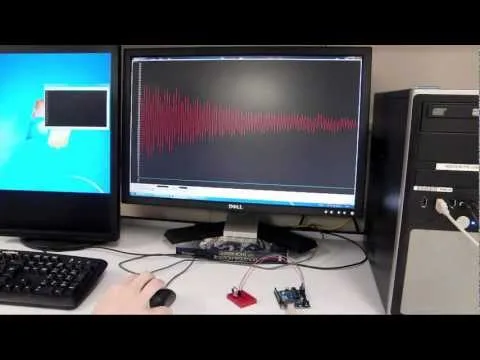

The interface is designed for ease of use, featuring trigger menus and views derived from established oscilloscope libraries. The software is versatile, accommodating any serial stream that follows the comma-separated value format with newline terminations. This adaptability ensures effective integration with numerous devices. Additionally, it offers resources like an Arduino sketch for sending analog inputs, facilitating efficient debugging and continuous monitoring of numerical data streams. The Serial Oscilloscope is accessible for free through techjockey.com.
